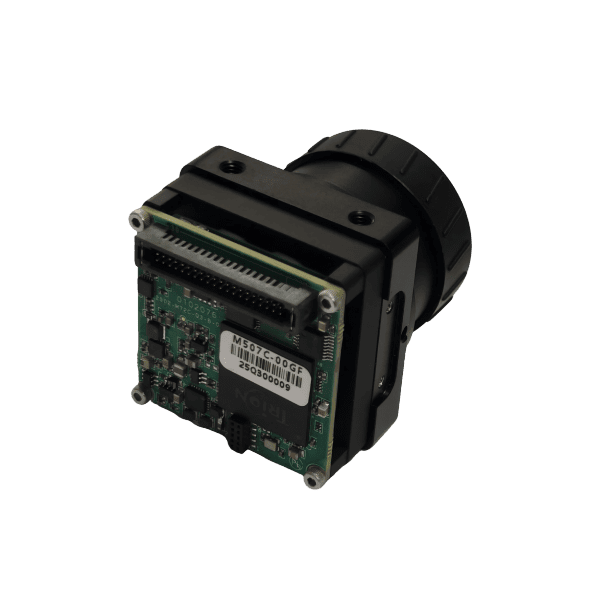

M507C Analog NST Thermal Imaging Core
Product Features:
- No shutting with non-uniformity calibrating technology(NUC)；
- Super low power consumption less than 0.8W；
- Compact design and light weight；
- High performance of temperature impact and environmental adaptability.
- No shutting with non-uniformity calibrating technology(NUC)；
- Super low power consumption less than 0.8W；
- Compact design and light weight；
- High performance of temperature impact and environmental adaptability.
M707C / M507C Series
Analog NST Thermal Imaging Core
No shutter NUC · Ultra-low power · Compact & lightweight
✨ Product Features
▶ No shutting with non-uniformity calibrating technology (NUC)
▶ Super low power consumption less than 0.8W
▶ Compact design and light weight
▶ High performance of temperature impact and environmental adaptability

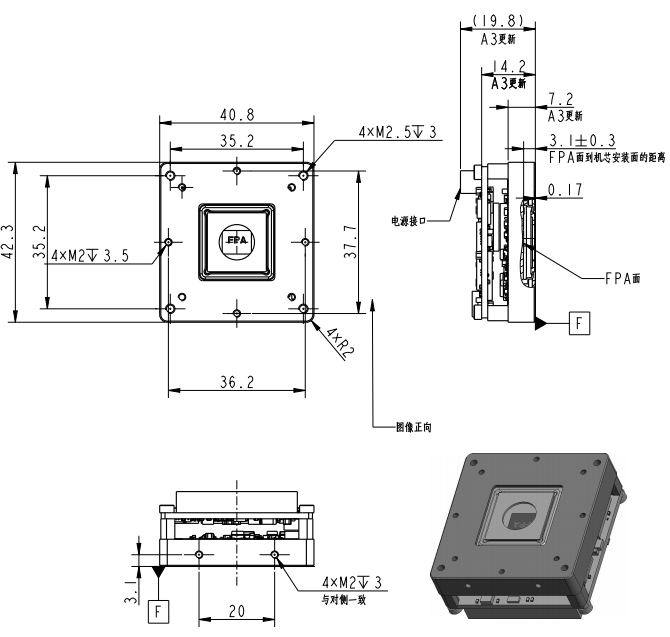

📐 Mechanical Dimensions
M707C
19.3mm × 41mm × 42.5mm
Weight <40g
M507C
19.3mm × 41mm × 42.5mm
Weight <40g
※ Original datasheet: Both M707C and M507C share same dimensions 19.3×41×42.5mm, weight <40g.
📊 Technical Specifications
| Parameter | M707C | M507C |
|---|---|---|
| Detector | VOC infrared FPA | |
| Resolution / Pixel pitch | 384×288 / 12μm | 640×512 / 12μm |
| NETD | ≤35mk @300K | |
| Spectral range | 8~14μm | |
| Focus Method | Fixed lens | |
| Focal length | 9/15/19/25/40/50mm etc. | |
| Image Effect | Auto adjustment for contrast ratio & brightness & acutance | |
| Uniformity calibration | NST | |
| Noise reduction | Digital filter | |
| Palette | 9 Pseudo color palettes changeable | |
| Resolution (output) | 768×576 | 768×576 / 640×480 |
| Power interface | DC +2.5V ~ +5.5V | |
| Analogue video | Double channels | |
| Series port | RS232 | |
| Digital video | BT656 (29.5MHz) | |
| Keyboard | 4 buttons keyboard | |
| Working temperature / humidity | -20℃~+60℃, for special using: -40℃~+60℃, 5%~95%RH | |
| Storage temperature | -45℃~+65℃ | |
| Power Consumption | ≤1W | ≤1.3W |
| Protection level | Shock resistance, vibration: GJB150-16 2.3.1, shock: GJB150-18, testing 7 100g/6ms | |
| Size (L×W×H) | 19.3mm × 41mm × 42.5mm | |
| Weight | <40g | |
