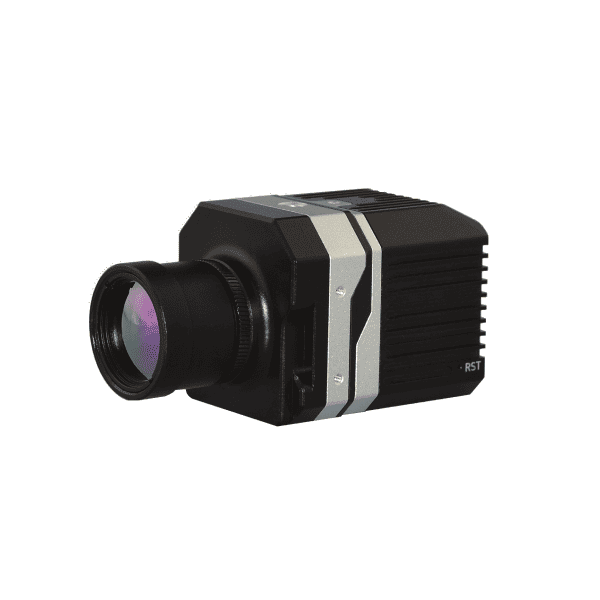

ThermEye 3V 6V IP Thermal Imaging Core
Product Features:
· Multiple image process: IDE, HDR, 3DNR;
· Support continuous digital zoom;
· Professional photoelectric zooming technology;
· Built-in video compression coding, easy for network transmission;
· Easily integrated to third party platform.
· Multiple image process: IDE, HDR, 3DNR;
· Support continuous digital zoom;
· Professional photoelectric zooming technology;
· Built-in video compression coding, easy for network transmission;
· Easily integrated to third party platform.
ThermEye 3V
ThermEye 6V
ThermEye 3V / 6V Series
Security IP Thermal Imaging Core
Multiple image process · Continuous digital zoom · Network ready
✨ Product Features
▶ Multiple image process: IDE, HDR, 3DNR
▶ Support continuous digital zoom
▶ Professional photoelectric zooming technology
▶ Built-in video compression coding, easy for network transmission
▶ Easily integrated to third party platform
📐 Mechanical Dimensions

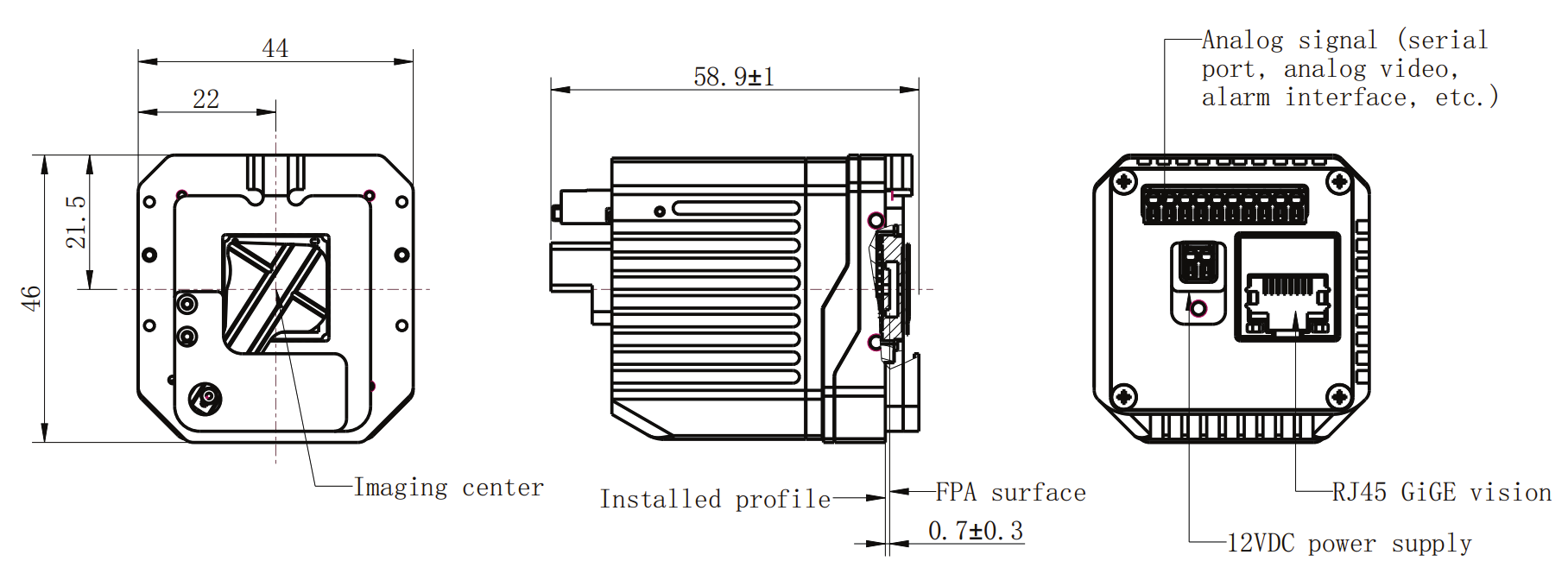

ThermEye 3V
58.9mm × 44mm × 46mm
Weight <110g (without lens)

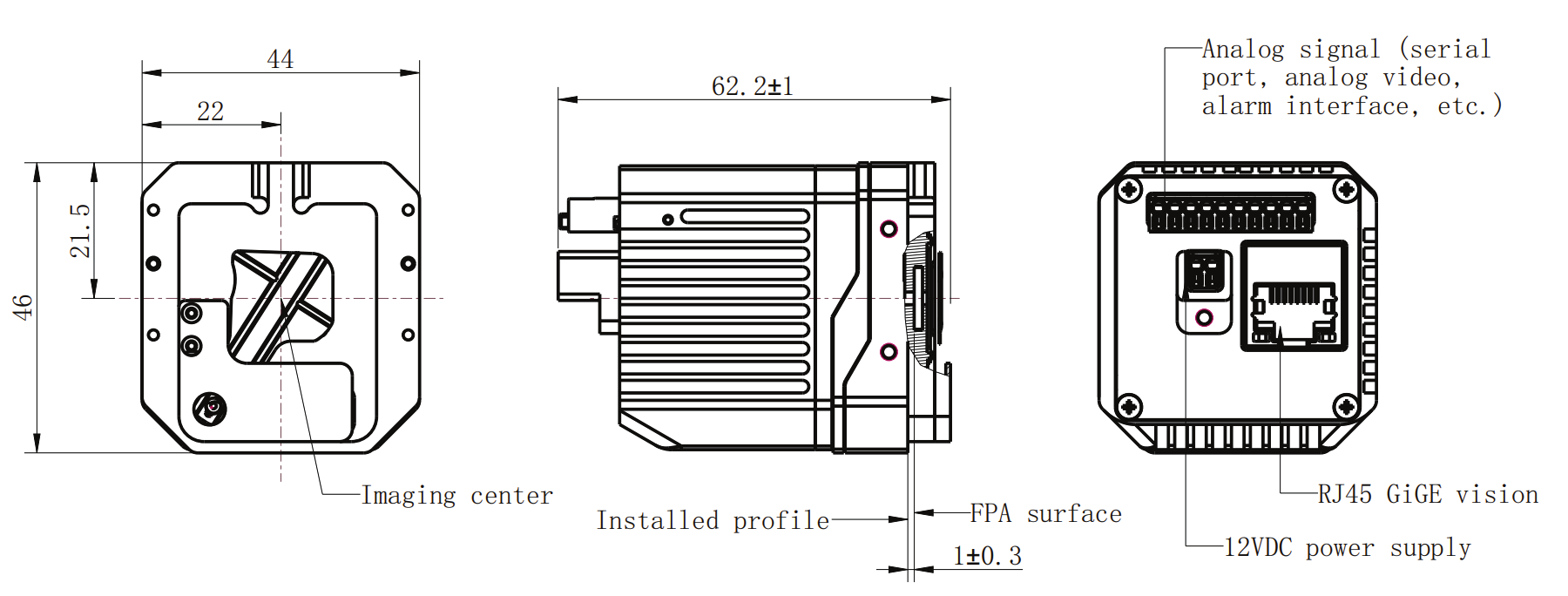

ThermEye 6V
62.2mm × 44mm × 46mm
Weight <110g (without lens)
※ Original datasheet: ThermEye 3V size 58.9×44×46mm; ThermEye 6V size 62.2×44×46mm. Both weight <110g without lens.
📊 Technical Specifications
| Parameter | ThermEye 3V | ThermEye 6V |
|---|---|---|
| Detector | Noncrystalline infrared FPA | |
| Resolution / Pixel pitch | 384×288 / 17μm | 640×512 / 17μm |
| Spectral range | 8~14μm | |
| NETD | ≤50mk @300K | |
| Focus Method | Athermalization & motorized | |
| Digital zoom | 1~8x Continuous | |
| Focal Length | Fixed lens: 9/15/19/25/35/40/50mm; Motorized: 25/35/40/50/75mm etc. | |
| Sun protection | Support, but as less as toward sun | |
| Image Effect | Auto/manual adjustment for contrast ratio & brightness & acutance | |
| Uniformity correction | Auto/manual shutter correction | |
| Noise reduction | 3DNR | |
| Image process | IDE, HDR, sea-sky model etc. | |
| Palette | 9 colors opted (rust, rainbow, white/black, etc.), palette customizable | |
| Power Supply | DC12V (+9V~+15V) | |
| Network interface | RJ45 10M/100M/1000M self-adaptive Ethernet port | |
| Serial port | 1xRS485, 1xRS232 | |
| Alarm | 1x ch input, 1x ch output | |
| Analog video | CVBS (75Ω) PAL | |
| Storage | Micro-SD (FT), up to 64GB | |
| Video compression | H.264 | |
| Main-Stream | 25fps (720×576) | |
| Sub-stream | 25fps (352×288) | |
| Protocols | TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, 802.1X, ONVIF (ProfileS) | |
| API | SDK, third-party management platform, ONVIF | |
| Common function | Heartbeat, multi-user access control | |
| Security | Support password protection, bonding MAC ID, IP filtration | |
| Simultaneous Live View | Up to 10 channels | |
| User/Host level | Up to 10 users, 3 levels: Administrator, Operator, General | |
| Storage temperature | -45°C ~ +65°C | |
| Work temperature & humidity | -40°C ~ +60°C, <90%RH | |
| Power consumption | <3W | |
| Size (L×W×H) | 58.9mm × 44mm × 46mm | 62.2mm × 44mm × 46mm |
| Weight | <110g (without lens) | |
