ThermEye D3P/D6P IP Thermal Imaging Core
Product Features:
· High sensitivity uncooled Vox detector;
· Support continuous digital zoom;
· Professional photoelectric zooming technology;
· With ethernet and Micro HDMI output ;
· Easily integrated to third party platform.
· Buildin EIS image analysis.
· Support AI Detection and Super resolution.
· High sensitivity uncooled Vox detector;
· Support continuous digital zoom;
· Professional photoelectric zooming technology;
· With ethernet and Micro HDMI output ;
· Easily integrated to third party platform.
· Buildin EIS image analysis.
· Support AI Detection and Super resolution.
ThermEye D3P / D6P Series
IP Thermal Imaging Core
High sensitivity uncooled VOx · Continuous digital zoom · Ethernet & Micro HDMI
✨ Product Features
▶ High sensitivity uncooled Vox detector
▶ Support continuous digital zoom
▶ Professional photoelectric zooming technology
▶ With ethernet and Micro HDMI output
▶ Easily integrated to third party platform
▶ Buildin EIS image analysis
▶ Support AI Detection and Super resolution

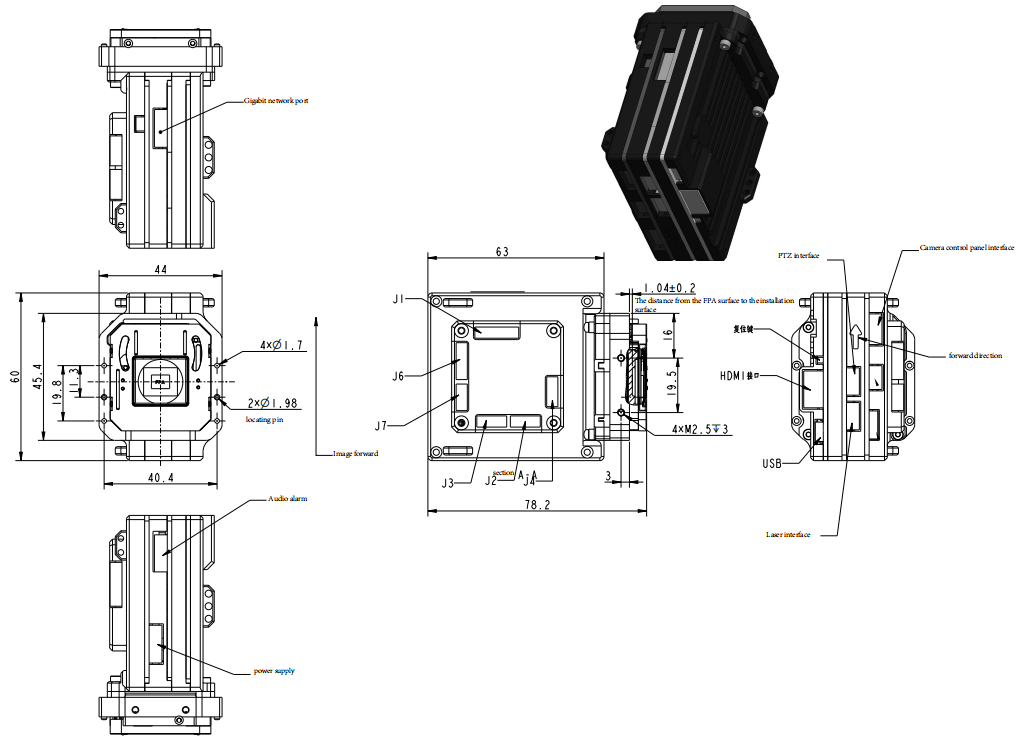

📐 Mechanical Dimensions
ThermEye D3P / D6P
44mm × 60mm × 78.2mm
Weight <160g (without lens)
Detailed dimensions available in official mechanical document
Detailed dimensions available in official mechanical document
Mounting Reference
⬚ Installation outline ⬚
Mechanical configuration per product drawing
※ Original datasheet: Size 44mm*60mm*78.2mm, weight <160g (without lens).
📊 Technical Specifications
| Parameter | ThermEye D3P | ThermEye D6P |
|---|---|---|
| Detector | Uncooled VOx infrared FPA | |
| Resolution / Pixel pitch | 384×288 / 12μm | 640×512 / 12μm |
| Spectral range | 8~14μm | |
| NETD | ≤35mk @300K | |
| Focus Method | Athermalization & motorized | |
| Digital zoom | 1~8x Continuous | |
| Focal Length | Fixed lens: 9/15/19/25/35/40/50mm; Motorized: 50/75mm / 25~100mm / 30~135mm etc. | |
| Sun protection | Support, but as less as toward sun | |
| Image Effect | Auto/manual adjustment for contrast ratio & brightness & acutance | |
| Uniformity correction | Auto/manual shutter correction | |
| Noise reduction | 3DNR | |
| Image process | IDE, HDR, sea-sky model, Super resolution, etc. | |
| Palette | 9 colors opted (rust, rainbow, white/black, etc.), palette customizable | |
| Power Supply | DC12V (+9V~+15V) | |
| Network interface | RJ45 10M/100M/1000M self-adaptive Ethernet port | |
| Serial port | 1xRS485, 1xUART, 1x RS422 | |
| Alarm | 1x ch input, 1x ch output | |
| Video output | Micro HDMI Out | |
| Audio | 1x ch input, 1x ch output | |
| Video compression | H.264 / H.265 / MJPEG | |
| Main-Stream | 25fps (1920×1080 / 1280×1024 / 720×576 / 640×512) | |
| Sub-stream | 25fps (720×576 / 640×512 / 320×256) | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, SNMP, IPv6 | |
| API | SDK, third-party management platform, ONVIF | |
| Common function | Heartbeat, multi-user access control | |
| Security | Support password protection, bonding MAC ID, IP filtration | |
| Simultaneous Live View | Up to 10 channels | |
| User/Host level | Up to 10 users, 3 levels: Administrator, Operator, General | |
| Storage temperature | -45℃~+75℃ | |
| Work temperature & humidity | -40℃~+60℃, <90%RH | |
| Power consumption | <5W | |
| Size (L×W×H) | 44mm × 60mm × 78.2mm | |
| Weight | <160g (w/o lens) | |
