NX9.610T Lens Long‑Wave Infrared Lens · Uncooled · Athermalized
Long‑Wave Infrared Lens
· Uncooled
· Athermalized
· Uncooled
· Athermalized
🔭 NX9.610T
Long‑Wave Infrared Lens · Uncooled · Athermalized
📊 Field of View (FOV) vs. Detector Resolution (17 µm Pixel Pitch)
| Focal Length (mm) | 160×120 | 320×240 | 384×288 | 640×512 |
|---|---|---|---|---|
| 17 | 24.1° | 47.2° | 56° | 89° |
| 12 | 17.1° | 33.8° | 40.3° | 66.3° |

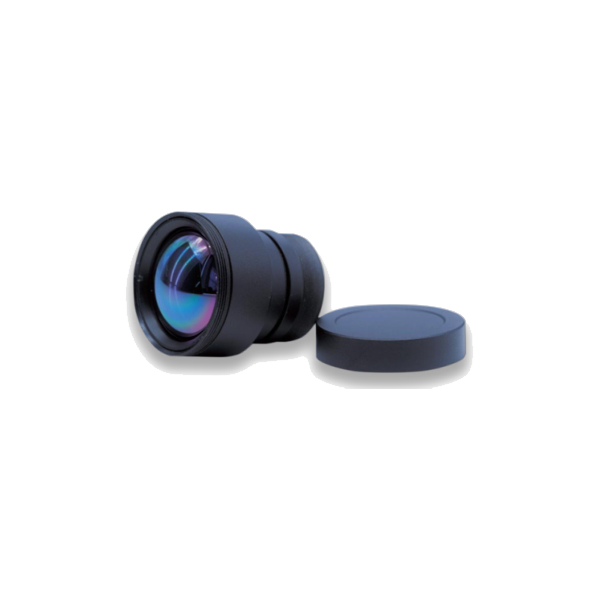

🖼️ Product Photo

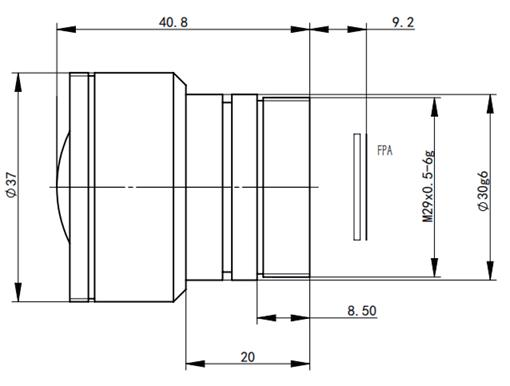

🖼️ Mechanical Drawing
📋 Technical Specifications
| Property | Value |
|---|---|
| Optical Feature | |
| Focal Length | 9.6 mm |
| F/# | 1.0 |
| Average Transmission | ≥88% |
| Spectral Range | 8 ~ 12 μm |
| Coating | AR |
| Detector Type | 640×512, 17 μm |
| Mechanical | |
| Focus Type | Athermalized |
| FOV | 59.07° × 49.77° |
| Depth of Field | 5 m ~ ∞ |
| Weight | 97 g |
| Max. Dimensions | L 40.8 mm, Φ 39.5 mm |
| Environmental | |
| Operating Temperature | −40 °C ~ +60 °C |
| Storage Temperature | −45 °C ~ +70 °C |
| Sealing | IP67 |
