ATOM905C High Resolution Shutterless Thermal Imaging Core 1280x1024/12um detector
ATOM905C High Resolution Shutterless Thermal Imaging Core 1280x1024/12um detector
Product Features:
- No shutting with non-uniformity calibrating technology;
- Super low power consumption: ≤1.8W;
- Compact design;
- Instantaneous boot: <5S;
- Real time with no delaying image output;
- High performance of temperature impact and environmental adaptability;
- Strengthen structure, high anti-vibration&anti-shock level.
- No shutting with non-uniformity calibrating technology;
- Super low power consumption: ≤1.8W;
- Compact design;
- Instantaneous boot: <5S;
- Real time with no delaying image output;
- High performance of temperature impact and environmental adaptability;
- Strengthen structure, high anti-vibration&anti-shock level.

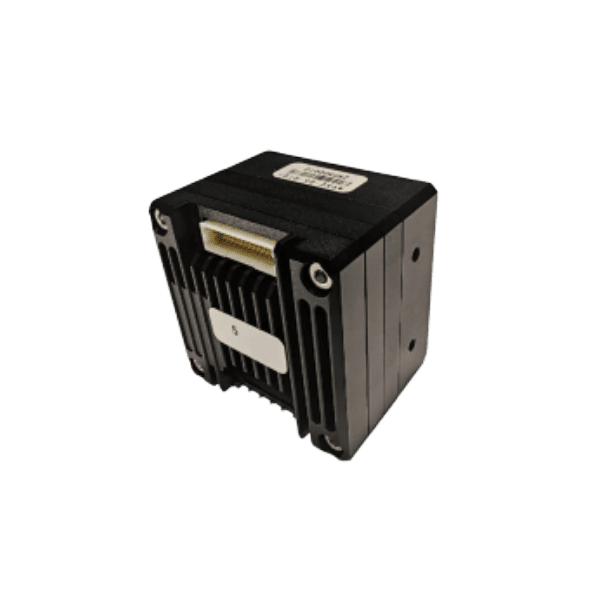

ATOM905C
ATOM905C High Resolution Shutterless
Thermal Imaging Core 1280x1024/12μm
No shutter NUC · Ultra-low power ≤1.8W · Instantaneous boot <5S
✨ Product Features
▶ No shutting with non-uniformity calibrating technology
▶ Super low power consumption: ≤1.8W
▶ Compact design
▶ Instantaneous boot: <5S
▶ Real time with no delaying image output
▶ High performance of temperature impact and environmental adaptability
▶ Strengthen structure, high anti-vibration & anti-shock level

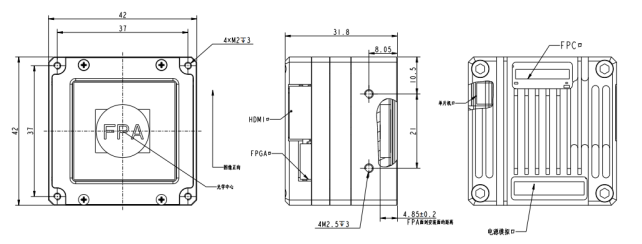

📐 Mechanical Dimensions
ATOM905C
42mm × 42mm × 32mm
Weight <101g (without lens)
Outline Reference
⬚ Mechanical drawing ⬚
Detailed dimensions available in official document
📊 Technical Specifications
| Parameter | ATOM905C |
|---|---|
| Detector | Noncrystalline infrared FPA |
| Resolution / Pixel pitch | 1280×1024 / 12μm |
| NETD | ≤35mk @ F1.0, 25Hz, 300K |
| Spectral range | 8~14μm |
| Focus Method | Fixed lens |
| Focal length | 35/40/50mm etc. |
| Image Effect | Auto adjustment for contrast ratio & brightness & acutance |
| Uniformity calibration | NST |
| Noise reduction | Digital filter |
| Palette | 9 Pseudo color palettes changeable |
| Resolution (output) | 1280×1024 |
| Power interface | DC +3V ~ +5.5V |
| Video output | HDMI, 1280×1024@50Hz |
| Series port | UART (3.3V) |
| Digital video | RGB888 |
| Keyboard | According the firmware version |
| Working temperature / humidity | -20℃~+60℃, for special using: -40℃~+60℃, 5%~95%RH |
| Storage temperature | -40℃~+60℃ |
| Power Consumption | ≤1.8W |
| Protection level | Shock resistance, vibration: GJB150-16 2.3.1, shock: GJB150-18, testing 7 100g/6ms |
| Size (L×W×H) | 42mm × 42mm × 32mm |
| Weight | <101g (without lens) |
