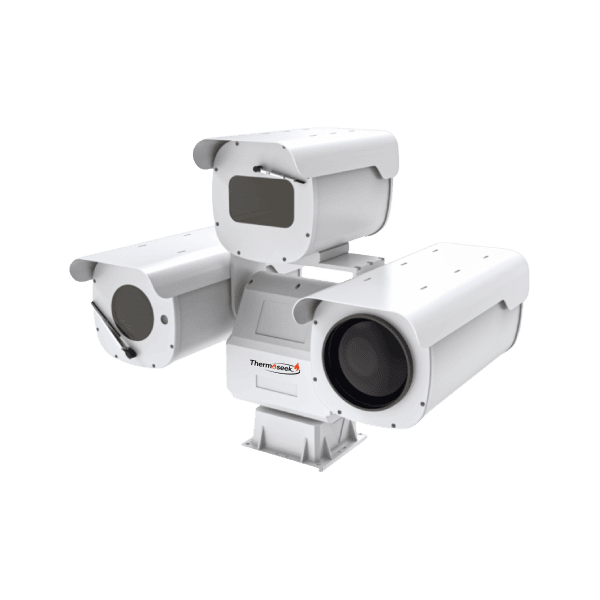

EC Series Long Range Multi-spectrum Cooled PTZ Camera
• Constantly regenerative AI algorithm with multiple targets types detection and tracking.
• Rapid rotation speed adjustment that is, rotation speed up to 120°/s, acceleration for 120°/s2.
• Strong environmental adaptability, IP66,prevent water,dust and corrosion resistant, electromagnetic interference resistant.
• Optional laser ranging distance totally one of six.
• Infrared zoom lens up to 660mm.
• Rapid rotation speed adjustment that is, rotation speed up to 120°/s, acceleration for 120°/s2.
• Strong environmental adaptability, IP66,prevent water,dust and corrosion resistant, electromagnetic interference resistant.
• Optional laser ranging distance totally one of six.
• Infrared zoom lens up to 660mm.
Download Specification

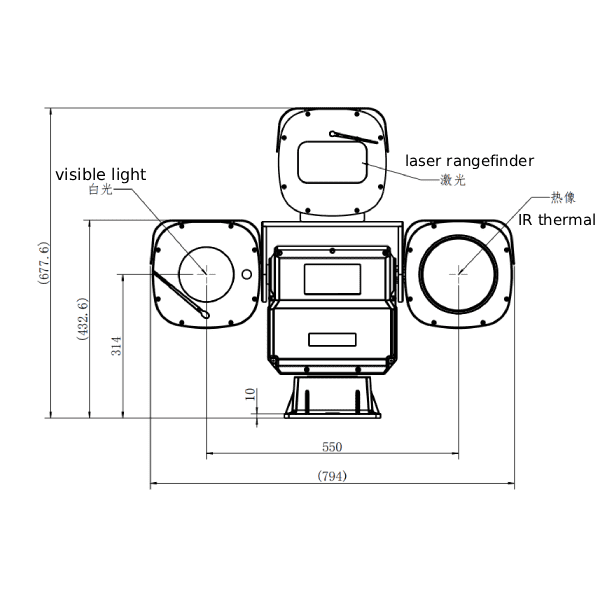

Dimensions:
EC Series · Long Range Multi-spectrum
Cooled PTZ Camera
Model: EC6 | High-performance cooled thermal & optical fusion
Superior situational awareness · AI-powered tracking · rugged environmental adaptability
Constantly regenerative AI algorithm with multiple target types detection & tracking.
Rapid rotation speed up to 120°/s, acceleration 120°/s².
IP66 · water, dust & corrosion resistant · electromagnetic interference protection.
Optional laser ranging (one of six configurations).
Infrared zoom lens up to 660mm (30~660mm F4.0).
🔥 Thermal Module (Cooled MWIR)
| Detector | Cooled MCT FPA |
|---|---|
| Resolution / Pixel Pitch | 640 × 512 / 15μm |
| NETD | < 20 mK @ 25°C |
| Spectral Range | 3.7 μm ~ 4.8 μm |
| Focus Method | Manual / Motorized (auto focus) |
| Focal Length & FOV (3 configurable options) |
|
| Image Adjustment | Auto/Manual adjustment for contrast ratio, brightness & acutance |
| Uniformity Correction | Auto/Manual shutter, background correction |
📷 Optical Module (VIS / HD Zoom)
| Image Sensor | 1/1.8" Progressive Scan CMOS |
|---|---|
| Resolution | 2688 × 1520 |
| Focal Length & Zoom | 10 ~ 860mm, 86× optical zoom |
| Field of View (FOV) | 38.4° (wide) ~ 0.48° (narrow) |
| Min. Illumination | Color: 0.0005 Lux @ (F1.5, AGC ON) B/W: 0.00001 Lux @ (F1.5, AGC ON) |
🎨 Image Processing & Color Palettes
| Thermal Image Process | AGC (Auto Gain Control), IDE (Image Detail Enhancement) |
|---|---|
| Color Palette | Optional 10 palettes: ironbow, rainbow, white-hot, black-hot, rust, medical, etc. |
| Digital Detail | Noise reduction · Edge enhancement · Pseudo-color variable |
🧠 Smart Functions & AI Analytics
| VCA (Video Content Analysis) | Motion detection, cross line detection, intrusion, area entry & exit |
|---|---|
| Fire Detection | Real-time flame & smoke detection (thermal + visible fusion) |
| Tracking | Human, vehicle, vessel classification & recognition · auto tracking |
| AI Regenerative Algorithm | Multiple target detection + continuous learning for high accuracy |
⚙️ PTZ Mechanism & Movement
| Movement Range | Pan: 360° continuous · Tilt: -60° ~ +60° |
|---|---|
| Presets | 200 programmable presets |
| Power Off Memory | Support (position recovery after reboot) |
| Pan Speed | 0.01° ~ 120°/s |
| Tilt Speed | 0.01° ~ 60°/s |
| Auto Scan & Patrol | Preset patrol / Auto line scanning / cruise & etc. |
| Rotation Acceleration | 120°/s² (rapid response) |
🌍 Environmental & General
| Protection Class | IP66 · corrosion resistant · electromagnetic interference (EMI) resistant |
|---|---|
| Operating Temperature | -20°C ~ +60°C (extended -40°C optional) |
| Humidity | 5% ~ 95% RH (non-condensing) |
| Shock & Vibration | GJB150-16 / GJB150-18, shock 100g/6ms compliant |
| Laser Ranging (Optional) | Up to 6km range option (configurable) |
📐 Additional Specifications
| Thermal Zoom Lens Options | 15~300mm / 22~450mm / 30~660mm (all F4.0) · motorized continuous zoom |
|---|---|
| Visible Zoom Ratio | 86× optical (10~860mm) + digital extender |
| Digital Video Output | BT656 / H.265 / H.264 / Ethernet (optional interface) |
| Weight (approx.) | < 5.5 kg (depending on lens configuration) |
