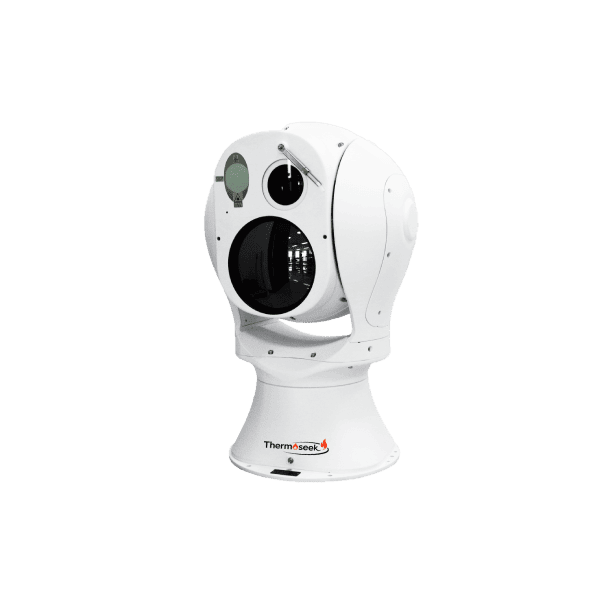

CHD Series-Ultra Range Multi-spectrum Cooled PTZ Camera
Product Features
· Detect wide range frequency spectrum,integrated cooled infrared detector and visible camera.
· Rapid rotation speed adjustment that is, rotation speed up to 120°/s, acceleration for 120°/s2.
· Strong environmental adaptability, IP66,prevent water,dust and corrosion resistant, electromagnetic interference resistant.
· Optional laser ranging and gyroscopic image stabilization.
· Infrared zoom lens up to 1100mm.
· Detect wide range frequency spectrum,integrated cooled infrared detector and visible camera.
· Rapid rotation speed adjustment that is, rotation speed up to 120°/s, acceleration for 120°/s2.
· Strong environmental adaptability, IP66,prevent water,dust and corrosion resistant, electromagnetic interference resistant.
· Optional laser ranging and gyroscopic image stabilization.
· Infrared zoom lens up to 1100mm.
Ultra Range Multi‑spectrum Cooled PTZ Camera
Download Specifications

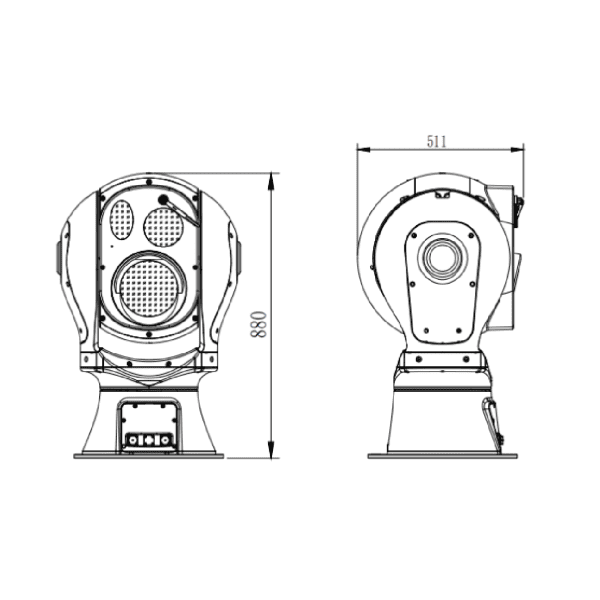

Dimensions:
- Detect wide range frequency spectrum, integrated cooled infrared detector and visible camera.
- Rapid rotation speed adjustment that is, rotation speed up to 120°/s, acceleration for 120°/s2.
- Strong environmental adaptability, IP66, prevent water, dust and corrosion resistant, electromagnetic interference resistant.
- Optional laser ranging and gyroscopic image stabilization.
- Infrared zoom lens up to 1100mm.
Technical Specifications
| 🔥 Thermal Module (CHD6 – Cooled MCT) | |
| Detector | Cooled MCT FPA |
| Resolution / Pixel pitch | 640×512 / 15μm |
| NETD | <20mK @ 25°C |
| Spectral range | 3.7μm ~ 4.8μm |
| Focus Method | Manual / Motorized (auto focus) |
| Focal Length (options) | 15~300mm F4.0 | 22~450mm F4.0 | 30~660mm F4.0 |
| FOV (for each focal length) | 15~300mm: 35°×28° ~ 1.8°×1.5° 22~450mm: 24.6°×19.8° ~ 1.2°×1.0° 30~660mm: 18.2°×14.6° ~ 0.8°×0.7° |
| Image adjustment | Auto/Manual adjustment for contrast ratio, brightness & acutance |
| Uniformity correction | Auto/Manual shutter, background correction |
| 📷 Optical Module | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Resolution (Visible) | 2688×1520 |
| Focal Length & Zoom | 10–860mm, 86x optical zoom |
| FOV (Visible) | 38.4° (wide) ~ 0.48° (tele) |
| Min. Illumination | Color: 0.0005 Lux @(F1.5, AGC ON) B/W: 0.00001 Lux @(F1.5, AGC ON) |
| 🎨 Image Effect | |
| Thermal image process | AGC, IDE |
| Color Palette | Optional 10 color palettes (rust, rainbow, white/black, etc.) |
| 🧠 Smart Function | |
| VCA | Motion detection, cross line, intrusion, area entry and exit |
| Fire Detection | Support |
| Tracking | Human, vehicle, vessel classification, recognition etc. |
| Tracking (option) | UAV classification, recognition etc. |
| 🔄 PTZ | |
| Movement range | Pan: 360° continuous; Tilt: -90° ~ +90° |
| Presets | 200 |
| Power Off Memory | Support |
| Pan speed | 0.01° ~ 120°/s |
| Tilt speed | 0.01° ~ 90°/s |
| Auto Horizontal Scan | Preset patrol / Auto line scanning & etc. |
| ⚙️ General & Environment | |
| Protection | IP66 (water, dust, corrosion resistant, electromagnetic interference resistant) |
| Optional features | Laser ranging, gyroscopic image stabilization |
| Infrared zoom lens max | Up to 1100mm (featured in bullet point) |
